Clamshell Heat Sealer, Hand Held Direct Heat 115V
Clamshell Heat Sealer, Hand Held Direct Heat 115V
Our Price: $115.00

Lightweight
Easy to operate
Two temperature settings:  high and low
Suited to any thickness
Direct heat weld, solid and firm
This Clam Shell Sealer  is equipped with two heated 3/8? wide and 10mm long serrated jaws
more info

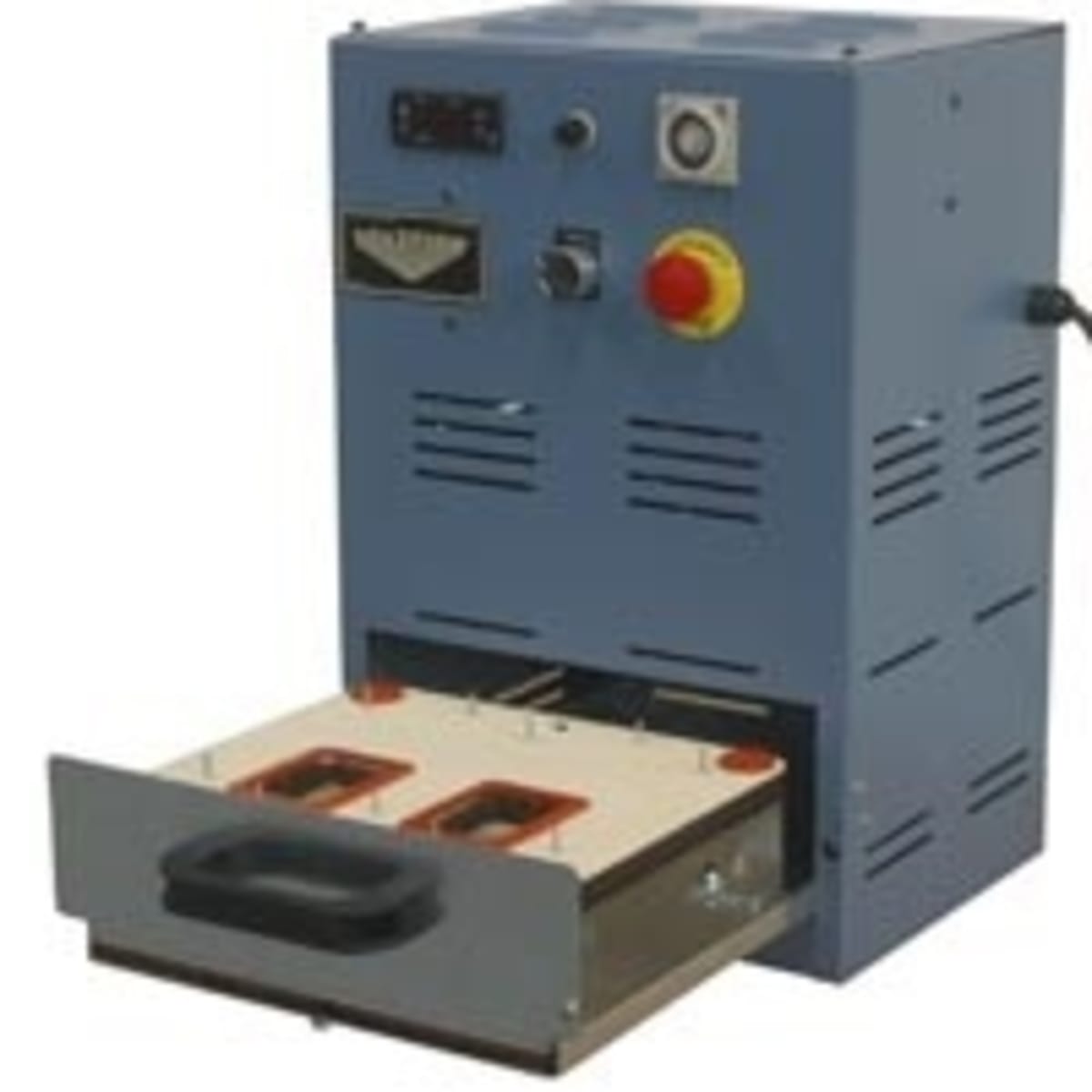

BLISTER SEALER, MANUAL SHUTTLE, 10" X 12" SEAL AREA, 2-CAVITY, 115V, 100 PSI
BLISTER SEALER, MANUAL SHUTTLE, 10" X 12" SEAL AREA, 2-CAVITY, 115V, 100 PSI
Our Price: $7,250.00

The STARVIEW SB series manual shuttle blister sealers are designed and built for industrial applications. These machines are designed for ease of operator training and operation. An efficient heating system keeps power consumption low. The machines can adapt to seal blister packages for a wide range of products by simply changing the tooling. *Please ask us for tooling prices for standard face seal carded blister applications. To operate, the blisters, products, and blister cards ar loaded into the sealing fixture. The sealing fixture is pushed into the machine and the sealing cycle is initiated automatically once the tray reaches the end of its travel. At the end of the short sealing cycle, the sealing fixture is pulled back, the finished package(s) are removed by the operator and the cycle is repeated.
Machine Controls: Electronic Seal Timer. 0-10 seconds in 0.1 second increments. Digital Temperature Controller. 1.0 degree increments within nominal machine temperature operating range of ambient to 450 degree F (230 C). May be programmed in degrees F or degrees C.
*For use on tabletop.
more info

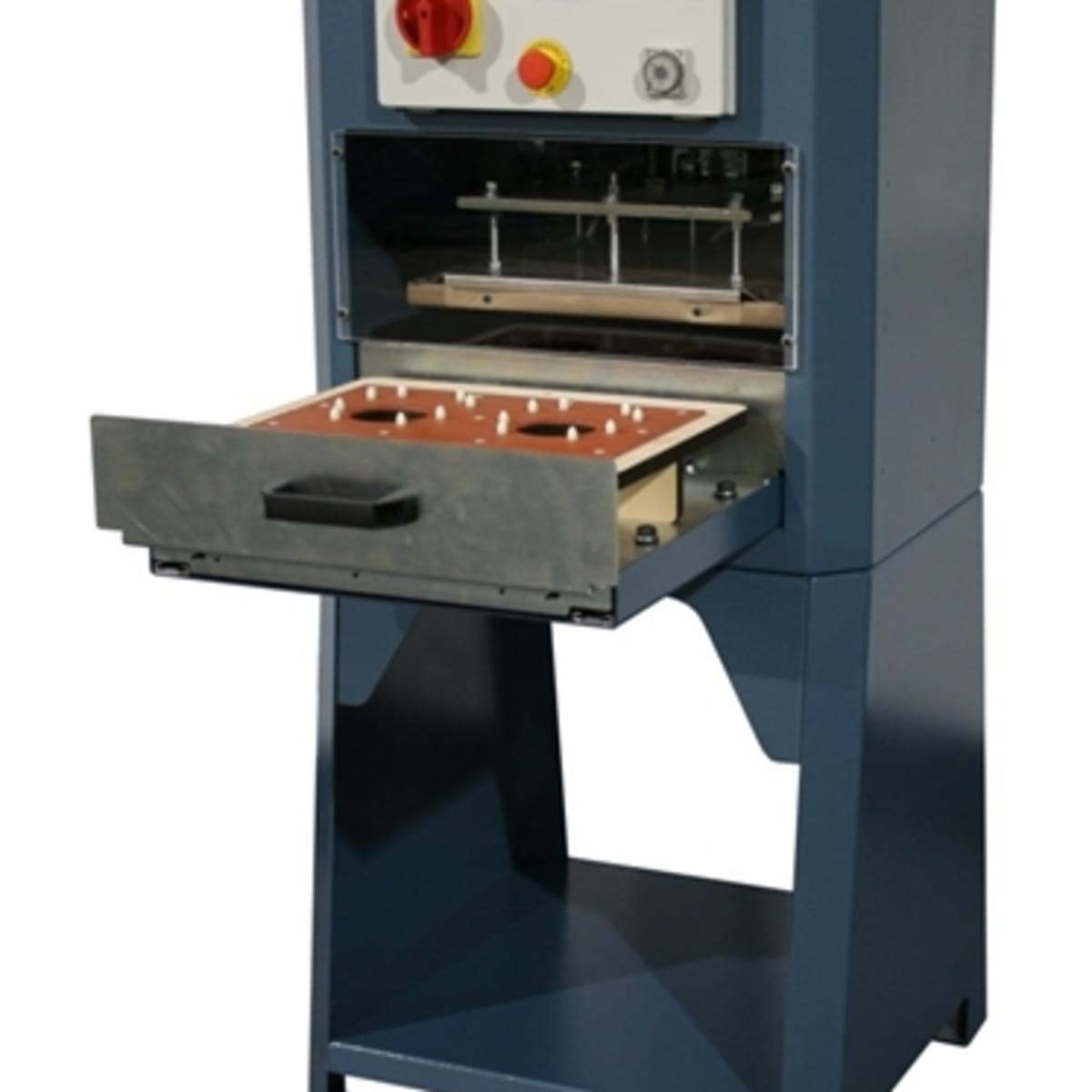

BLISTER SEALER, MANUAL SHUTTLE, 14" X 18" SEAL AREA, 2-CAVITY, 115V, 100 PSI
BLISTER SEALER, MANUAL SHUTTLE, 14" X 18" SEAL AREA, 2-CAVITY, 115V, 100 PSI
Our Price: $10,950.00

The STARVIEW SB series manual shuttle blister sealers are designed and built for industrial applications. These machines are designed for ease of operator training and operation. An efficient heating system keeps power consumption low. The machines can adapt to seal blister packages for a wide range of products by simply changing the tooling. *Please ask us for tooling prices for standard face seal carded blister applications. To operate, the blisters, products, and blister cards ar loaded into the sealing fixture. The sealing fixture is pushed into the machine and the sealing cycle is initiated automatically once the tray reaches the end of its travel. At the end of the short sealing cycle, the sealing fixture is pulled back, the finished package(s) are removed by the operator and the cycle is repeated.
Machine Controls: Electronic Seal Timer. 0-10 seconds in 0.1 second increments. Digital Temperature Controller. 1.0 degree increments within nominal machine temperature operating range of ambient to 450 degree F (230 C). May be programmed in degrees F or degrees C.
STANDARD FEATURES:
Main power/heater OFF/ON selector switch.
Teflon sheet covered sealing plate.
Pneumatic platen cylinder.
Hot plate insulator.
Operator safety platen guard.
Filter, regulator & pressure gauge.
Self standing floor model.
Welded heavy-wall steel tube construction.
Steel components powder coated blue color.
more info
